Liebert - GXT MT - CX - 1-2-3 kVA

Liebert - GXT MT - CX - 1-2-3 kVA

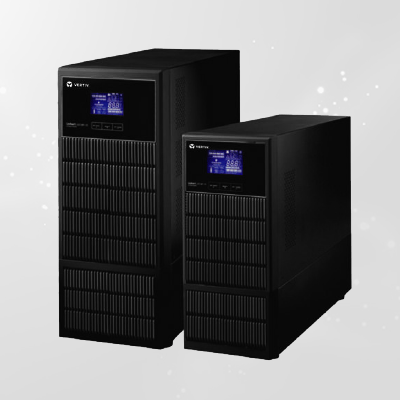

Liebert® GXT MT+ CX™ is a sleek, high frequency, double-conversion UPS with wide input voltage/frequency and better output voltage regulation, which makes it an ideal choice for harsh environments, especially those facing concerns related to unstable mains output and high load impact. This advanced UPS provides higher availability while offering intelligent monitoring and network management functions.

The ultimate level of engineering and dynamics that have gone beyond the development of this next-generation UPS make it a high performance system with proven reliability, giving you ultimate peace of mind.

Find Us On: facbook twitter linkedin youtube instagram

Industrial Application:

  • Mission critical applications and systems
  • Network Workstations
  • Servers
  • IDF/Network closets
  • Large network peripherals
  • VoIP
  • Workstations

GXT MT+ CX 16 A by Capacity

1000 VA / 800W
2000 VA / 1600 W
3000 VA / 2400 W

Benefits:

  • Remote monitoring is available through USB/RS232 and optional via dry contacts and SNMP
  • The monitoring option software support TCP/IP with event log and analysis function
  • Self-diagnosis and protection enable the auto shutdown of the client terminal or server auto shutdown of the client terminal or server under abnormal mains supply or when battery is over discharged
  • SNMP Manager Card with advanced view power software (optional): allows remote monitoring through RJ45 & manages multiple UPS from anywhere through internet
  • Data logging real time dynamic graphs of UPS data, warning notification via audible alarm, broadcast, mobile message, e-mail & SNMP traps
  • Also supports optional environmental monitoring detector for temperature, humidity and smoke. Password security protection and remote access management

Features:

  • IGBT Based Rectifier
  • True Online Double Conversion with DSP Control Technology for High Performance and Reliability
  • New Graphical LCD Display provides UPS data, alarms and helps in faults diagnostic and trouble shooting
  • Double Conversion Efficiency up to 92%
  • Active Input Power Factor Correction 0.99
  • 0.8 Output Power Factor
  • Wide Input Voltage window (110 – 280Vac) for Indian environmental condition and for optimised battery performance
  • Configurable Output Voltage (200/208/220/230/240Vac)
  • Generator compatible with wide input
  • Frequency Range (40 Hz-70 Hz)
  • 8 Stage extendable charging design for optimised Battery performance
  • Adjustable battery charging current 2/4/6/8/10/12/14/16 Amps according to battery capacity rating
  • 50/60 Hz automatic frequency converter mode
  • Intelligent monitoring with standard RS232/USB port plus slot available for RS485/Dry Contact/SNMP card
  • Inbuilt OVCD (Over Voltage Cut-off device)
