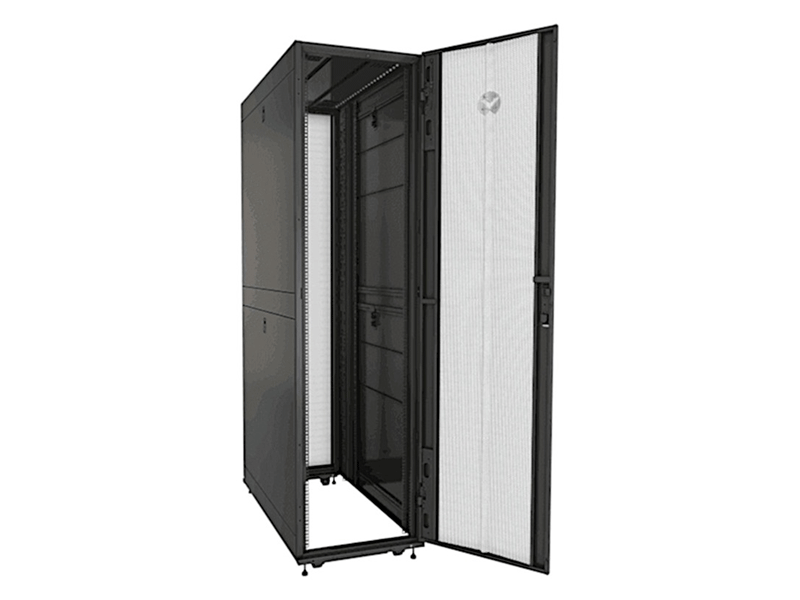

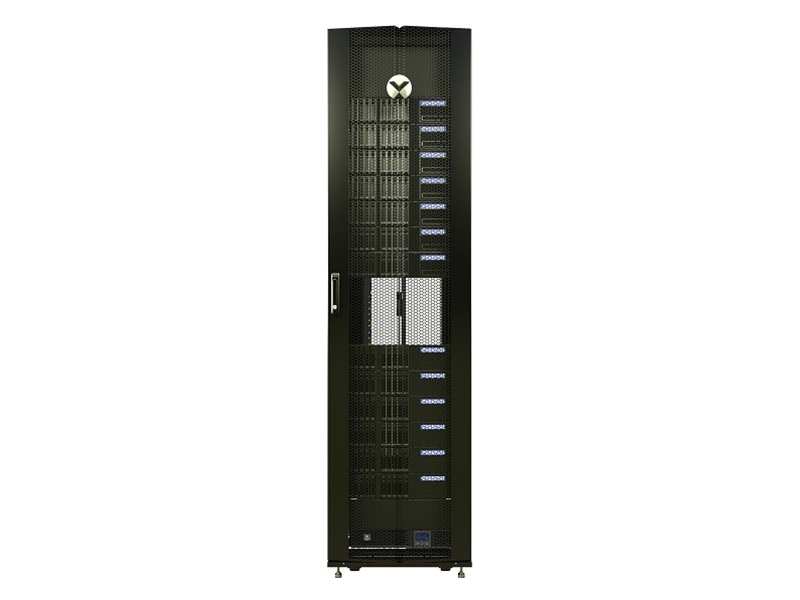

VR Rack Solutions

Easy installation and integration of components and devices. Supports high-density weight loads

The VR Rack Solutions provides the comfort to standardize the deployments around the IT world and bring them online faster. It supports a wide variety of equipment including servers, storage, switches, routers, PDUs, UPSs, console port servers and KVM switches.

It is a ready product for high density environments to serve your mission critical needs — even as they evolve and change. This rack serves the flexibility you need with easy installation.

The complete rack includes:

  • Single 77% perforated locking front door
  • Split 77% perforated locking rear doors
  • 2 pair split locking side panels
  • High density cable entry top cover (2000 Cat 6 cables)
  • 2 sets of 19” EIA Rails
  • 2 full height rack PDU Mounting / Cable management brackets (one per side)
  • Low profile casters and leveling feet
  • Baying brackets
  • Bolt down brackets
  • Hardware includes (50 each M6 cage nuts and screws), Cage nut installation tool, edge protection for top panel cable entry, T30 / Phillips L key, T30 extension driver
  • Keys

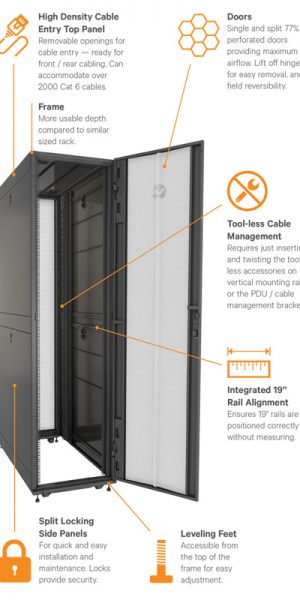

Vertiv-VR-Rack

Features:

  • Frame capable of supporting up to 3000 lbs (1360kg) Static, 2250 lbs (1022kg) Dynamic, 2000 lbs (907kg) Transport (with Shock Package)
  • Simple external baying, allows for metric or on 24” centers and leveling feet incorporated into the frame for easy adjustment
  • 42U frame height that will allow access through standard doors on four swivel casters
  • Single perforated front door and split rear doors with tool-less lift off hinges
  • Locking handles
  • Field reversible doors
  • 77% perforation exceeds IT manufacturers’ specifications
  • Split side panels with single locking slam latch
  • Tool-less removable top panel
  • Integrated hole pattern for easy installation of top panel accessories (cable management, modular busway support brackets, and ladder / cable tray support brackets)
  • Four cable entry holes allowing for up to 2000 Cat6 cables, or 60A PDU plugs
  • Top Panel load capacity of 150 lbs
  • (2) Pair of full height 19” EIA mounting rails, accepts cage nuts, U markings on front and rear of each rail
  • Depth markings included on frame for easy alignment
  • Accessory mounting holes along rails allow for mounting of cable management fingers and tool-less accessories
  • Rectangular cutouts for routing cables through 800mm (31.5”) wide 19” EIA rails from front to rear or for airflow for side breathing equipment
  • Full depth adjustability within the usable space
  • Two dual purpose full height depth adjustable PDU / Cable Management brackets mounted in the zero U space
  • Button mount keyholes throughout to accommodate tool-less button mounting of rack PDUs of various heights
  • Accessory mounting holes allow for mounting of tool-less cable management accessories
  • Integrated cable tie off positions
  • Depth adjustable
  • Frame, doors, side panels, top panel, rails and PDU brackets are powder coated RAL 7021 (Black)
